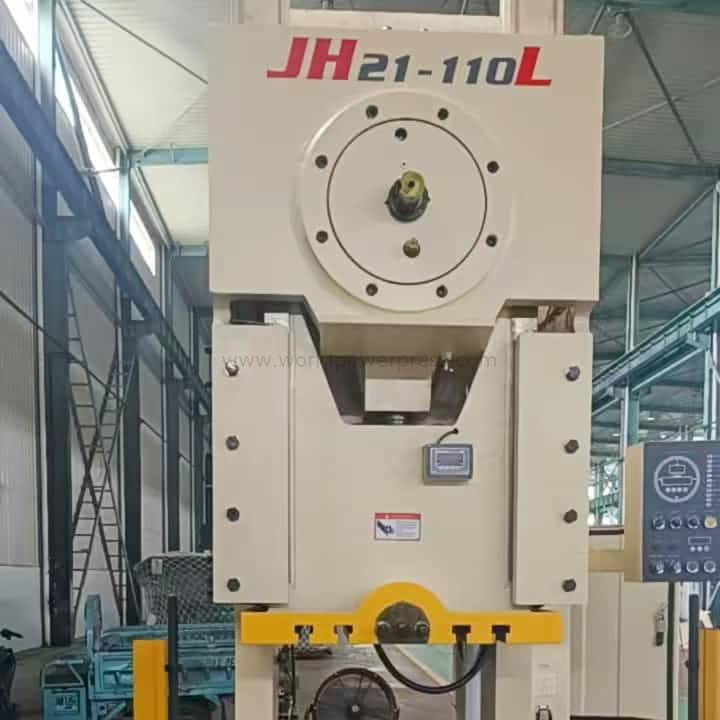

JH21-110L
-variable haba ng stroke: 10mm/34mm/66mm/94mm/120mm/140mm/152mm/158mm/160mm
-Pneumatic clutch at preno, tuyong uri, madaling pagpapanatili
-PLC control na may electric cam controller
-Two-hand button control, opsyonal ang control pedal control
-8-sided slide gabay sa riles

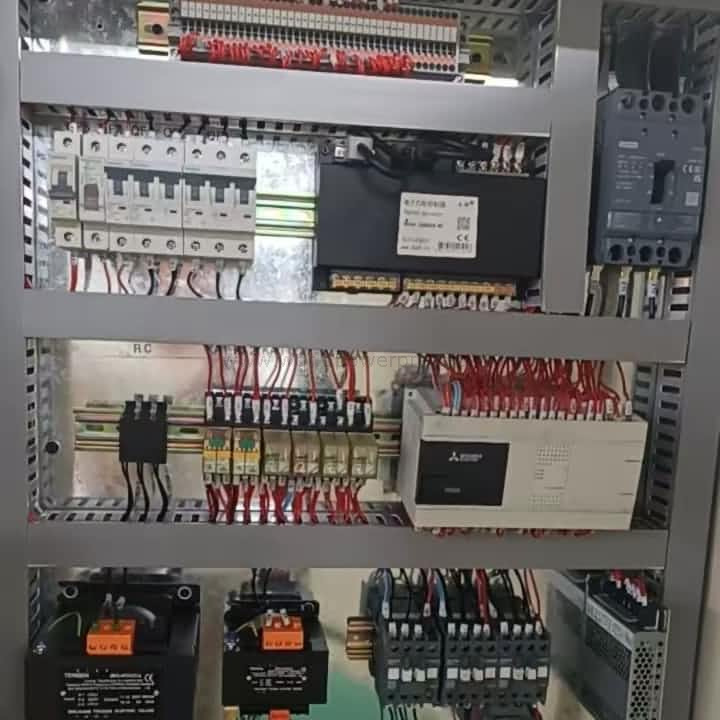

-PLC Control (Delta/Mitsubishi)
-Pneumatic clutch at preno (ompi)
-Overload Protection Pump (Showa/King Air/Auto Power)
-Safety solenoid valve para sa klats (azbil)
-Thin oil lubricate pump

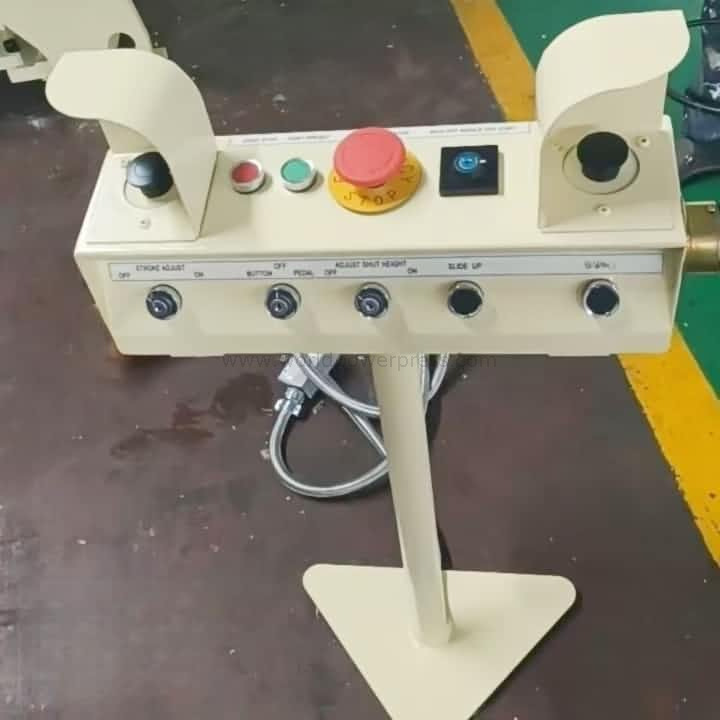

-Two-hand-button control panel na may pedal pedal
-Anti-vibration pad
-Inverter para sa nababagay na bilis ng stroke
-Front side safety light hadlang
-Slide counterweight balanse cylinder
-Slide Taas ayusin ang motor na may tagapagpahiwatig ng taas
-CAM Controller
-Die cushion
-Hydraulic die clamp, die lifters
-Physical na bakod sa kaligtasan
| JH21-110L | ||||
| Kapasidad | Kn | 1100 | ||
| Nominal stroke | mm | 6 | ||
| Slide stroke | mm | 10-160 | ||
| SPM | Naayos | min-1 | 50 | |
| Variable | min-1 | 40-60 | ||
| Max. Mamatay taas | mm | 350 | ||
| Die taas na pagsasaayos | mm | 80 | ||
| Lalim ng lalamunan | mm | 350 | ||
| Sa pagitan ng mga haligi | mm | 710 | ||
| Bolster | Lr | mm | 1150 | |
| FB | mm | 680 | ||
| Thk | mm | 140 | ||
| Pagbubukas ng bolster | mm | φ260 × 50 | ||
| (Up hole dia. × dpth × mababang hole dia.) | × φ220 | |||
| Slide area | Lr | mm | 810 | |
| FB | mm | 500 | ||
| Shank Hole | Dia. | mm | φ60 | |
| Dpth | mm | 80 | ||
| Pangunahing kapangyarihan ng motor | KW | 11 | ||
| Dimensions | FB | mm | 1860 | |
| Lr | mm | 1400 | ||
| H | mm | 3350 | ||
| Net weight | kg | 10000 | ||
