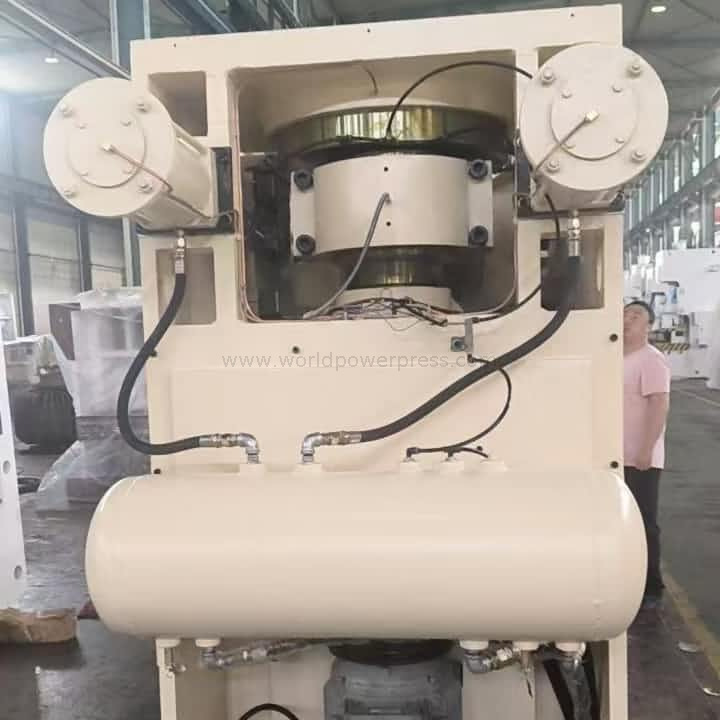

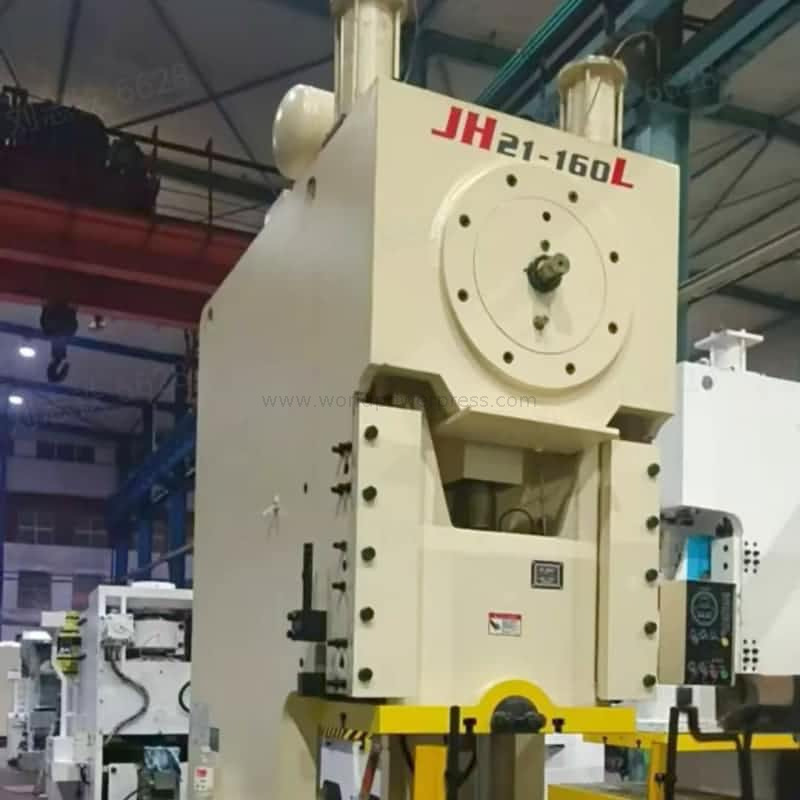

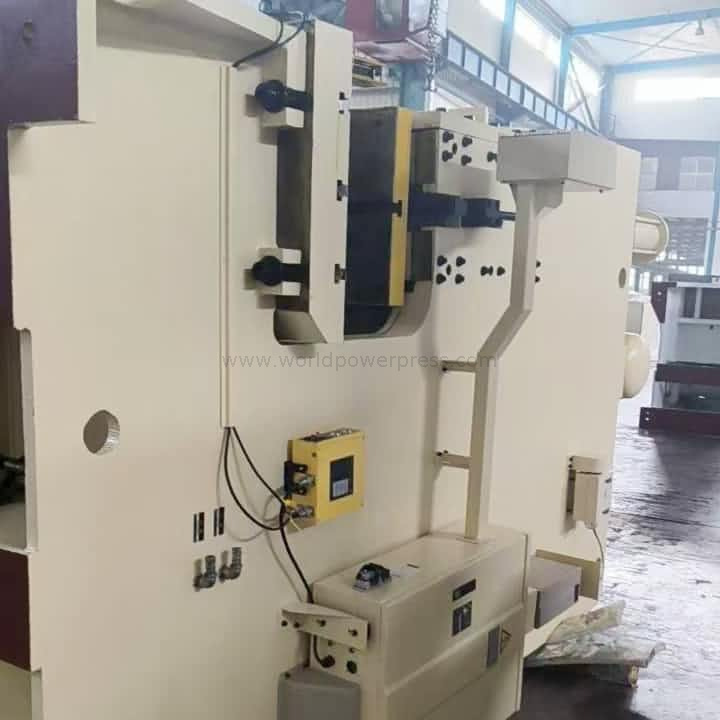

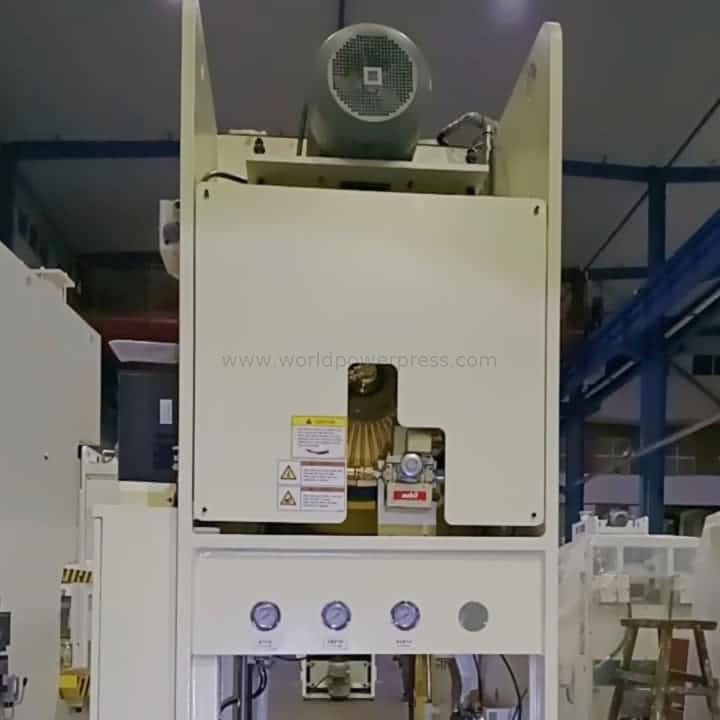

JH21-160L
-8 mukha ram gabay riles, mas mataas na katumpakan
-C frame steel welded body
-stroke lenght ay manu -manong nababagay: 16/44/81/114/138/155/160mm
-PLC control, dry type clutch

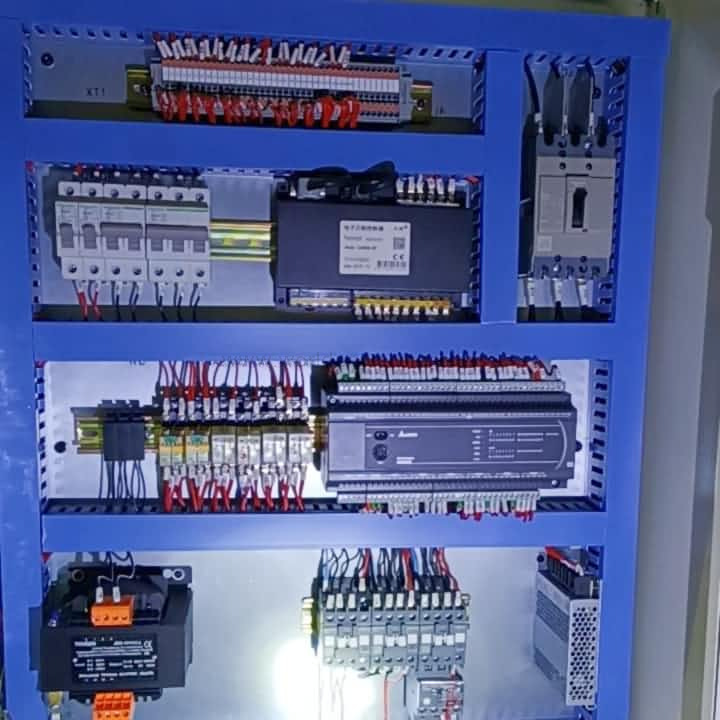

-PLC Control (Delta/Mitsubishi)
-Pneumatic clutch at preno (ompi)
-Overload Protection Pump (Showa/King Air/Auto Power)
-Safety solenoid valve para sa klats (azbil)
-Thin oil lubricate pump
-Two-hand-button control panel na may pedal pedal
-Anti-vibration pad
-Inverter para sa nababagay na bilis ng stroke
-Front side safety light hadlang
-Slide counterweight balanse cylinder
-Slide Taas ayusin ang motor na may tagapagpahiwatig ng taas
-CAM Controller
-Die cushion
-Hydraulic die clamp, die lifters
-Physical na bakod sa kaligtasan
| JH21-160L | ||||
| Kapasidad | Kn | 1600 | ||
| Nominal stroke | mm | 6 | ||
| Slide stroke | mm | 16-160 | ||
| SPM | Naayos | min-1 | 40 | |
| Variable | min-1 | 35-50 | ||
| Max. Mamatay taas | mm | 350 | ||
| Die taas na pagsasaayos | mm | 110 | ||
| Lalim ng lalamunan | mm | 380 | ||
| Sa pagitan ng mga haligi | mm | 810 | ||
| Bolster | Lr | mm | 1300 | |
| FB | mm | 740 | ||
| Thk | mm | 150 | ||
| Pagbubukas ng bolster | mm | φ300 × 50 | ||
| (Up hole dia. × dpth × mababang hole dia.) | × φ260 | |||
| Slide area | Lr | mm | 920 | |
| FB | mm | 580 | ||
| Shank Hole | Dia. | mm | φ65 | |
| Dpth | mm | 85 | ||
| Pangunahing kapangyarihan ng motor | KW | 15 | ||
| Dimensions | FB | mm | 2250 | |
| Lr | mm | 1600 | ||
| H | mm | 3800 | ||
| Net weight | kg | 14500 | ||
