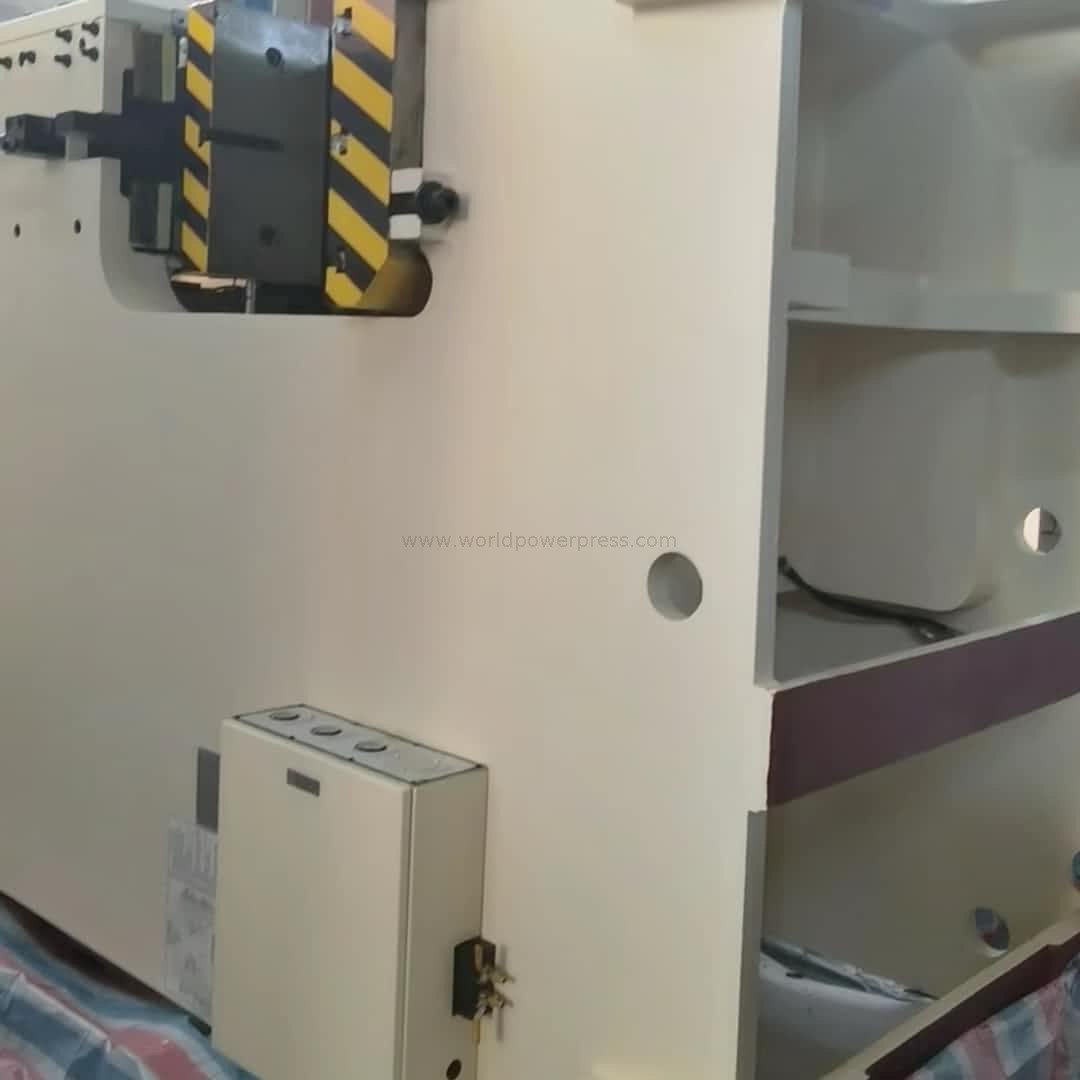

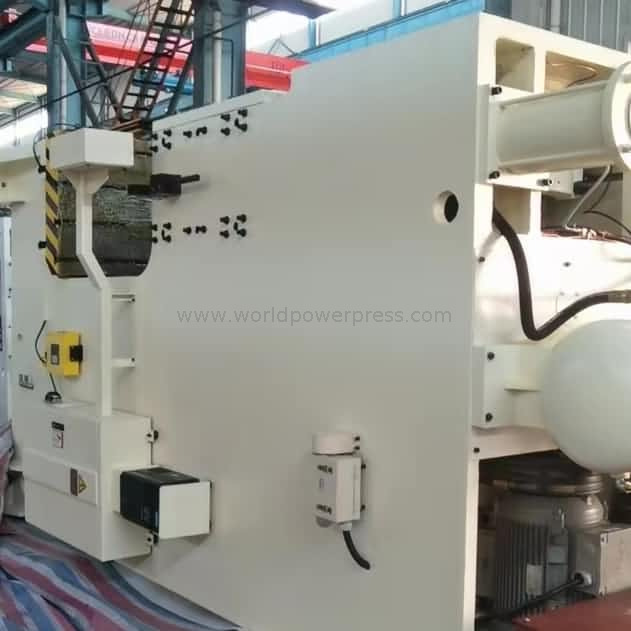

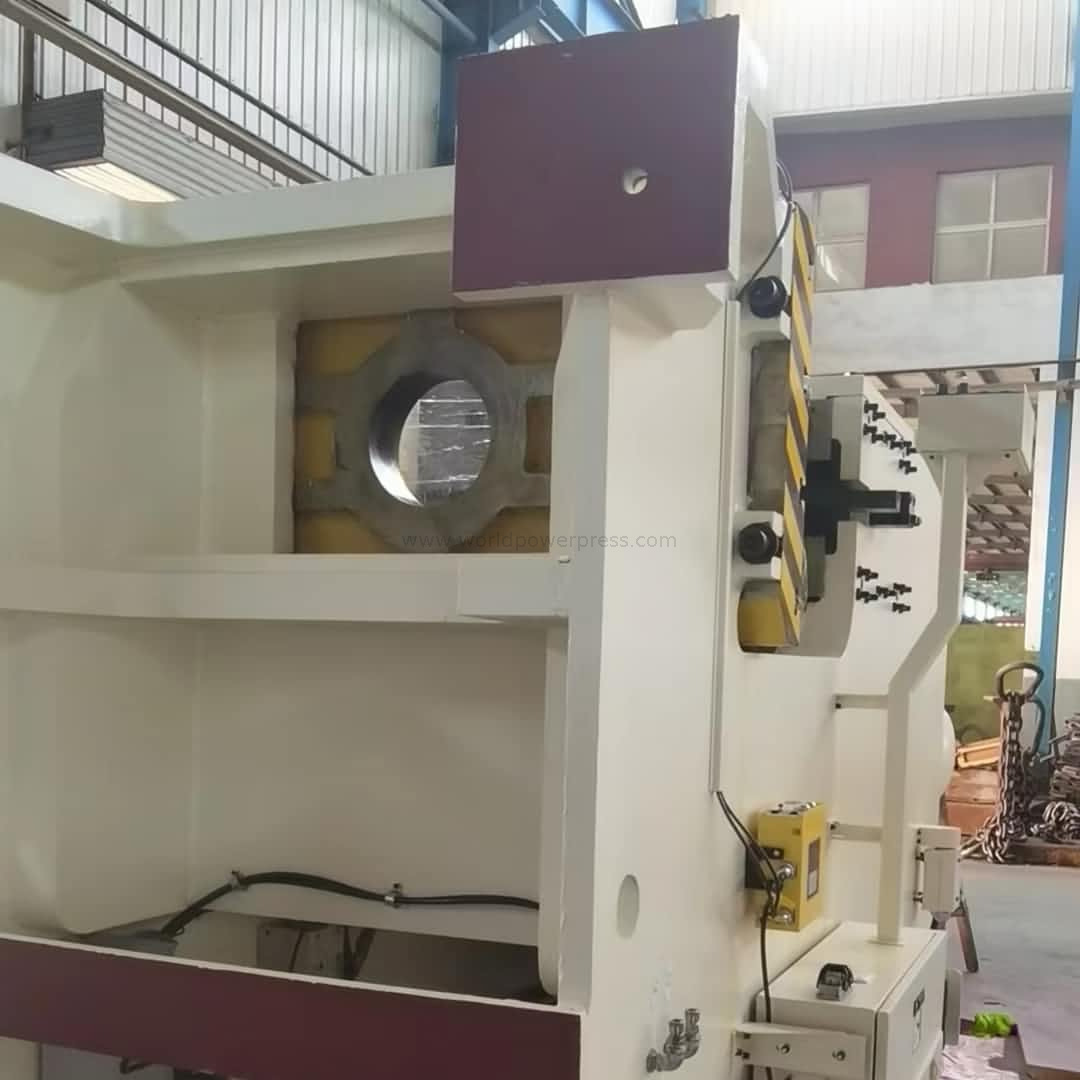

JH21-200L
-stroke haba ng variable: 18mm, 50mm, 91mm, 128mm, 156mm, 174mm at 180mm
-C frame steel welded body
-8 mukha slide gabay riles para sa mas mataas na katumpakan
-PLC control na may electric cam controller
-PLC Control (Delta/Mitsubishi)
-Pneumatic clutch at preno (ompi)
-Overload Protection Pump (Showa/King Air/Auto Power)
-Safety solenoid valve para sa klats (azbil)
-Thin oil lubricate pump
-Two-hand-button control panel na may pedal pedal
-Anti-vibration pad
-Inverter para sa nababagay na bilis ng stroke
-Front side safety light hadlang
-Slide counterweight balanse cylinder
-Slide Taas ayusin ang motor na may tagapagpahiwatig ng taas
-CAM Controller
-Die cushion
-Hydraulic die clamp, die lifters
-Physical na bakod sa kaligtasan
| JH21-200L | ||||
| Kapasidad | Kn | 2000 | ||
| Nominal stroke | mm | 6 | ||
| Slide stroke | mm | 18-180 | ||
| SPM | Naayos | min-1 | 35 | |
| Variable | min-1 | 30-40 | ||
| Max. Mamatay taas | mm | 450 | ||
| Die taas na pagsasaayos | mm | 110 | ||
| Lalim ng lalamunan | mm | 390 | ||
| Sa pagitan ng mga haligi | mm | 920 | ||
| Bolster | Lr | mm | 1400 | |
| FB | mm | 760 | ||
| Thk | mm | 160 | ||
| Pagbubukas ng bolster | mm | φ300 × 50 | ||
| (Up hole dia. × dpth × mababang hole dia.) | × φ260 | |||
| Slide area | Lr | mm | 970 | |
| FB | mm | 600 | ||
| Shank Hole | Dia. | mm | φ65 | |
| Dpth | mm | 90 | ||
| Pangunahing kapangyarihan ng motor | KW | 18.5 | ||
| Dimensions | FB | mm | 2500 | |
| Lr | mm | 1700 | ||
| H | mm | 4200 | ||
| Net weight | kg | 17950 | ||
